Adding Sources

Each Data Supply requires its own source set up on the system. First you create the source, then when you add a Data Import Template, you select the source to import the data from.

Setting up a source

  1. Select Sources from the Data Loading menu.

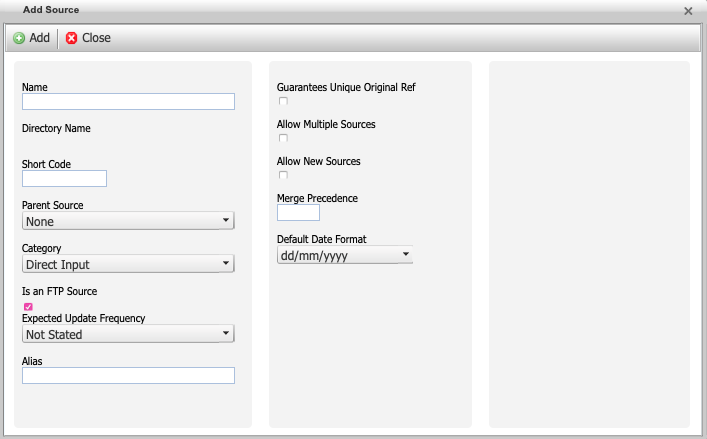

  2. Click Add to open the Add Source window.

  3. Enter the information for the source:

    • Name - Identifies the source and is used to name the directory on the FTP server that stores incoming data files.

    • Short Code - A string that identifies it in code. It is usually an abbreviated, lowercase version of the source’s name.

    • Parent Source - Specifies another source as the “Parent” of this one. It has no effect on ETL processes.

    • Category - Either “Direct Input” or “ETL procs” (reserved for future use). It currently has no effect, but you should identify ETL sources for future compatibility.

    • FTP Source - Check this box for all ETL sources to create a directory for the source on the FTP server. You can create SFTP credentials for the supplier to deliver the data files onto the SFTP. These get imported into the system.

  4. Select the additional options:

    • Guarantees Unique Original Ref: Select this if the source provides an ID for incoming person records that is unique to that person. It is used as a check before running the Source URN dedupe rule.

    • Allow Multiple Sources

    • Allow New Sources

    • Default date format: Select either

      • Day-Month-Year (European)
      • Month-Day-Year (American)
      • Year-Month-Day (Asian/ISO 8601)

  5. Click the Add button.

Adding FTP account information

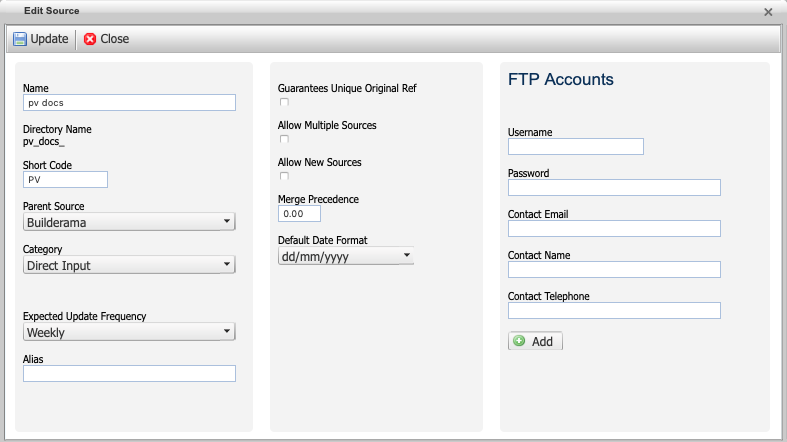

After you add the source, you will need to reopen the source and specify the FTP credentials.

  1. If you are using an FTP source, select the new source from the list to Edit the source.

  2. Enter a username and password for an account that has access to the FTP site.

  3. Enter the email, name, and telephone for the user associated with the user account.

  4. Click Add to add the information.

  5. Close the dialog box. The source will now appear in the Source drop-down menu on the Add Data Import Template dialog box.
