HTML Block properties

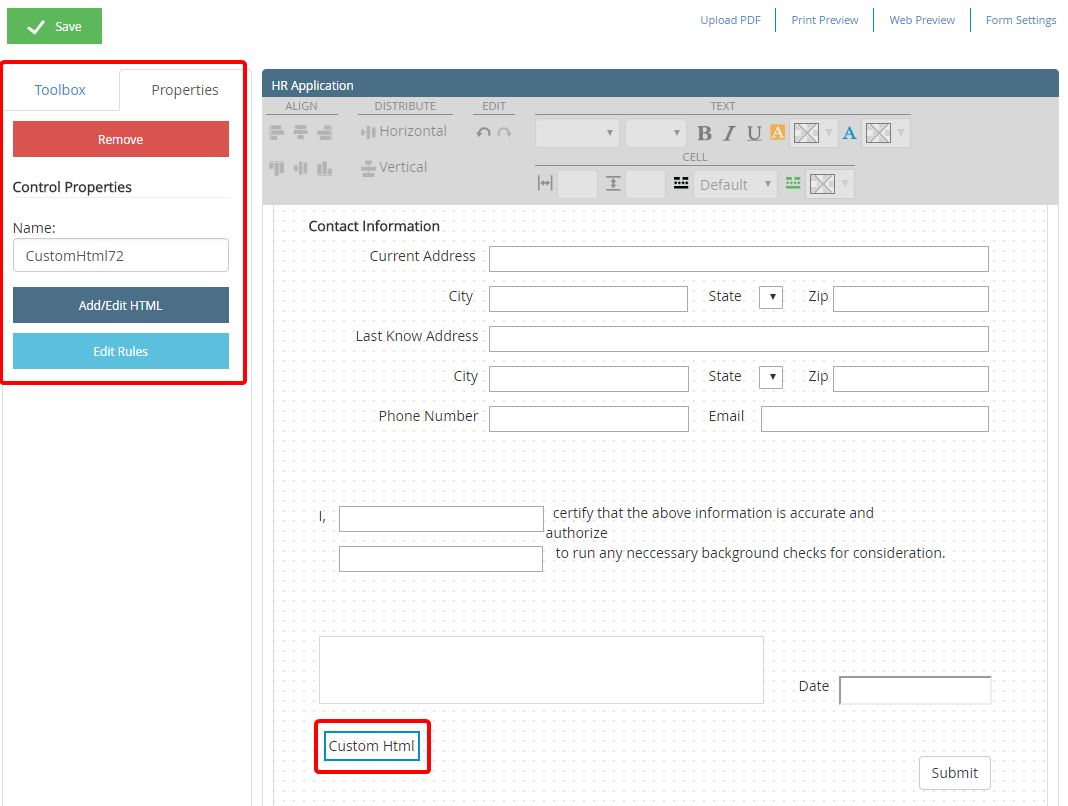

The properties of the HTML Block control are displayed under the Properties tab.

Name: A name for the HTML block control. This name is used to identify the HTML block control in other forms.

Add/Edit HTML: Opens the Edit HTML window where you can type custom HTML for the form.

Edit Rules: Opens the Edit Rules window where you can configure conditional rules for the control. See Conditional rules for more information.

HTML Variables

Variable	Result
<form method="post" action="$$URL$$">	This variable is required while creating or editing forms.
<input type=”text” name=”Sample” valuee=”$$ Sample$$”>	Provides text input field on a form.
<input type=”textarea” name=”Sample”>$$Sample$$</textarea>	Provides text area on a form.
<input type="checkbox" name="Option1"$$Option1$$>Option 1 <input type="checkbox" name="Option2"$$Option2$$>Option 2	Provides check boxes on a form.
<input type=”radio” name=”Sample” valuee=”option1” $$Sample$$>Option 1 <input type=”radio” name=”Sample” valuee=” option2” $$Sample$$>Option 2	Provides radio buttons on a form.
<select name=”Sample”<option value=”option 1” $$Sample$$>Option 1 <option value=”option 2”$$Sample$$>Option 2 <option value=”option 3” $$Sample$$>Option 3 </select>	Provides the ability to select multiple options on a form.
