JSON

JSON is a text format for storing and transporting data.

This is an example of a JSON object.

Example:

{"member" : {
    "fullName":    {
        "firstName": "John",
        "lastName": "Doe"
        },
    "car":"Mercedes",
    "age":32
    }
}

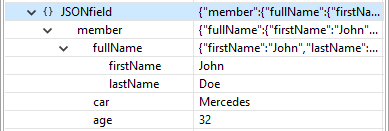

In the Data Model, JSON objects are displayed in the JSON field on a single line. The individual keys and values appear in subsequent lines.

For a further explanation of the syntax see: MDN Web Docs.

Defining JSON values

• Extraction: Extracting (part of) a JSON structure by selecting it automatically creates a JSON field. However, extracting a single key-value pair results in a String field.

  You can also set the type of an existing field to JSON.

  1. In the Data Model, select the field.

  2. On the Step properties pane, under Field Definition set the Type to JSON.

• JavaScript Expression: Set the desired value as a JSON string, using the JavaScript function JSON.stringify().

  Example: record.fields["myJSON"] = JSON.stringify({"member":{"fullName":{"firstName":"John", "lastName":"Doe"},"car":"Mercedes","age":32}});

Using JSON values in scripts

In scripts in the DataMapper and Designer, you can access properties inside a JSON field using the dot notation.

For instance, let's say that the JSON object at the top is extracted to a JSON field named myJSON. To access the value "Mercedes" in a standard Designer script, you would write record.fields.myJSON.member.car

The same notation can be used in expressions (see Variable data in text: expressions).
