Create Telephony Provider Profile

You must create and configure a telephony provider profile within the Admin App to use your telephony system with InGenius. To create a new telephony provider profile:

  1. In the Admin App, select the Telephony tab.

  2. Select Create Telephony Provider.

  3. Select the Telephony type dropdown and select your telephony system.

  4. Name the profile.

  5. Select Set Telephony Type.

  6. Select Publish.

Note: You will be unable to publish your profile until after you've gathered information from your Genesys telephony page. Keep the telephony profile page open and proceed to the Telephony Configuration and then the Configure Telephony Profile section.

On-Premises Telephony Profile Configuration

This section requires you to use the InGenius Admin App and the InGenius Configuration Tool.

For information on device assignment, consult the documentation here.

For information on high availability, consult the documentation here.

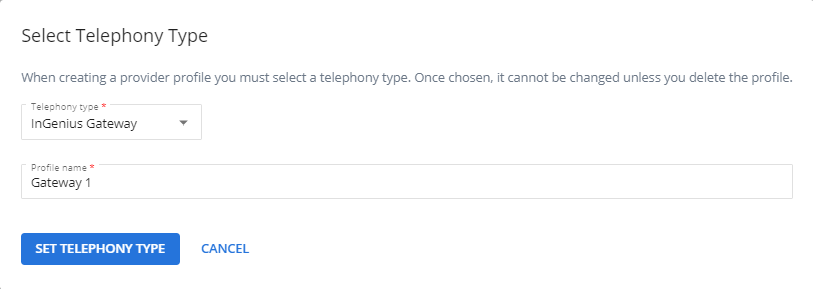

Create New Provider Profile

To create a new telephony provider profile:

  1. In the Admin App, select the Telephony tab.
  2. Select Create Telephony Provider.
  3. Select the Telephony type dropdown > InGenius Gateway.
  4. Name the profile.
  5. Select Set Telephony Type.

Configure Telephony Gateway Profile

Next, you need to link the telephony gateway to InGenius using the gateway URL found in the Configuration Tool.

To link the telephony gateway with InGenius:

  1. Navigate to the InGenius Configuration Tool.
  2. Select the Configuration tab, then the General sub-tab.

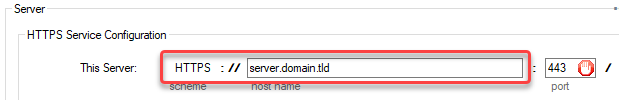

  3. Highlight and copy the gateway URL. The URL is located under the HTTPS Service Configuration heading in the Configuration Tool. The location is shown in the image below:

  4. Navigate back to the gateway telephony profile created in the Admin App.

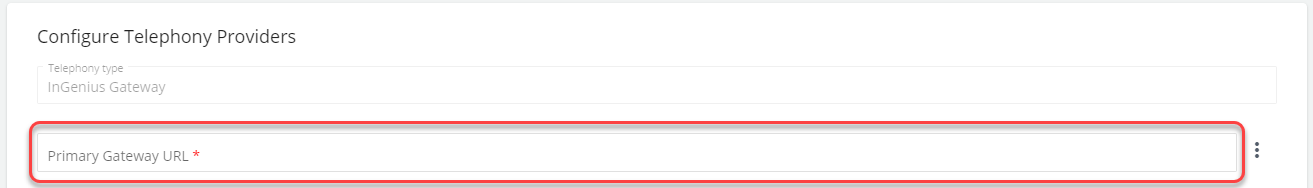

  5. Paste the copied gateway URL into the Primary Gateway URL field (location shown in the image below). Ensure to include HTTPS:// before the URL text.

    6. Note: If you are using a non-standard port other than 443, ensure to include the port number at the end of the URL, separated by a colon. Example: https://server.domain.tld:800

  6. (Optional) Select the More Options icon > Telephony Gateway Settings to configure additional settings, such as the logging level and TAPI lines, if required by your phone system. For more information, refer to the Telephony Gateway Settings section on this page.
