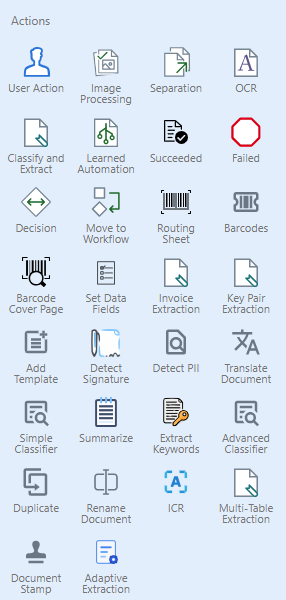

Action stencils

User Action stencil: The User Action stencil is used when a document needs to stop in order for a user to do something with it. Each User Action stencil will appear as a folder in the Document Panel.

Image Processing stencil: The Image Processing stencil is used to automatically despeckle, deskew, and rotate images. It can also be used to remove blank pages or remove color and grayscale depth from a document.

Separation stencil: The Separation stencil is used to automatically separate documents by barcode, page count, or blank pages.

OCR stencil: The OCR stencil is used to automatically perform Optical Character Recognition (OCR) on documents. The OCR information can be used to index documents.

Classify and Extract stencil: The Classify and Extract stencil is used to automatically classify documents and extract information using a preconfigured forms project file.

Learned Automation stencil: The Learned Automation stencil is used to automatically classify documents and extract information.

Succeeded: The Succeeded stencil is used to specify the end of a successful workflow process. You can use multiple Succeeded stencils if the process requires more than one end point. You can filter on this status in Work Items.

Failed: The Failed stencil is used to specify the end of a workflow process that failed. You can use multiple Failed stencils if the process requires more than one end point. You can filter on this status in Work Items. For more information about saving export stencil failure messages to a data field, see View export stencil failure messages.

Decision stencil: The Decision stencil is used to provide branching of a step based on one or more conditions.

Move to Workflow stencil: The Move to Workflow stencil is used to move a document from the current workflow process to another workflow process.

Routing Sheet:  The Routing Sheet stencil is used to process an existing routing sheet.

Barcodes: The Barcodes stencil is used to scan documents for barcodes and map barcode values to data fields.

Barcode Cover Page: The Barcode Cover Page stencil is used to map barcode values to data fields when scanning or importing documents into Intelligent Capture.

Set Data Fields: The Set Data Fields stencil is used to update one or more data field values as part of the workflow.
